Wireless Handheld Ultrasound

PIU2A Handheld Ultrasound System

2a-内页 拷贝 4

Ultra-Portable and Flexible

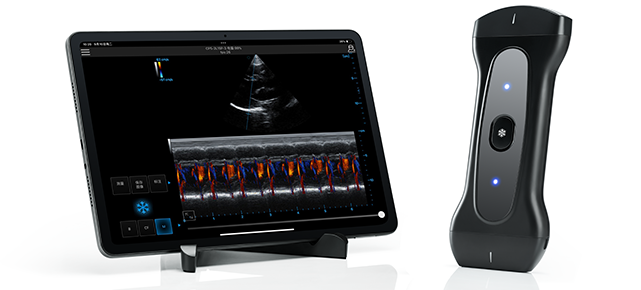

PIU2A Handheld Ultrasound

Green line

PIU2A sets a new standard in handheld ultrasound. The wireless dual-probe with curved and linear transducers delivers crystal clear images anytime, anywhere. Designed for both novice and pros, it’s always with you—ultra-portable, customizable and intuitive. Small and lightweight, PIU2A goes with you to every patient.









  • Male patient under ultrasound scanning



    Built by Periodmed Right from Your Needs

    PIU2A works seamlessly for OB/GYN, musculoskeletal, kidney, and other evaluations, with one device delivering triple the freedom and portability. Contex transducer is ideal for abdominal imaging, obstetric and gynecologic assessments and urological evaluations, linear transducer for vascular, MSK, and more, and phased array for hearts. Wide applications and lightweight design make it great option in your pocket wherever your patient is in need.

    •

  • Get Outstanding Imaging Quality Instantly

    Periodmed never compromises image quality and so does PIU2A. Powered by speckle reduction technology, it takes scanning imaging quality one step further, showing you enhanced details for more confident clinical decisions. Both shallow and deep scans can be easily performed anywhere anytime with clarity in just one device.



    PIU2A ultrasound

    •

  • PIU2A under water



    Durable and Robust Design

    PIU2A offers you both ultra-flexibility for point of care and durability for daily handling. Durable design made possible with IPX7 waterproof feature allows you to easily disinfect. Our robust device allows doctors to accelerate treatment decisions and bring them informed insights right in their pocket.

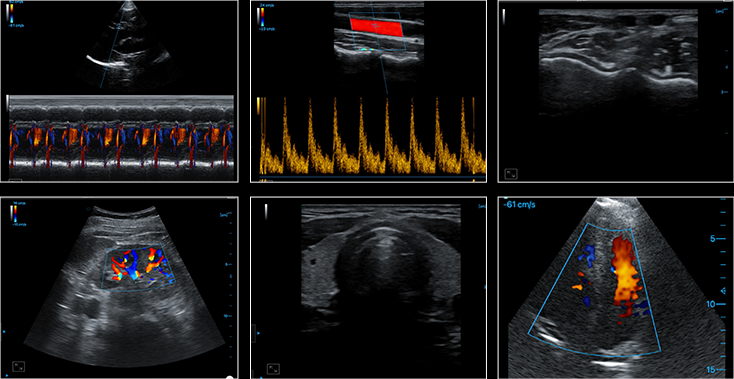

Ultrasound Imaging
  • Ultrasound imaging
  • Ultrasound imaging
  • Ultrasound imaging
  • Ultrasound imaging
  • Ultrasound imaging
  • Ultrasound imaging

PIU Specification

Element array：

192

Gain Control：

8 Segment TGC and overall gaincan be adjustable

Language Support：

English，Arabic， Chinese，French， German，

Indonesian， Italian， Portuguese，Russian，Spanish

Storage formats：

DICOM

Image formats:

BMP, JPG

Storage devices：

Hard drive image storage

Application:

Generic，Abdomen，Obstetrics，Gynecology，Vascular，Small

Parts， Urology, MSK,Cardiology

Scanning Angle/length:

Convex array 60degrees,Linear array 40mm,Phased Array 90 degree

Frequency:Convex array 2.5-6.0MHz, Linear array5.0-12.0 MHz, Phased array 2.5-6.0MHz
Measurement:Length, Area,Speed,Heart rate,S/D, Velocity,Obstetric, Automatic blood flow

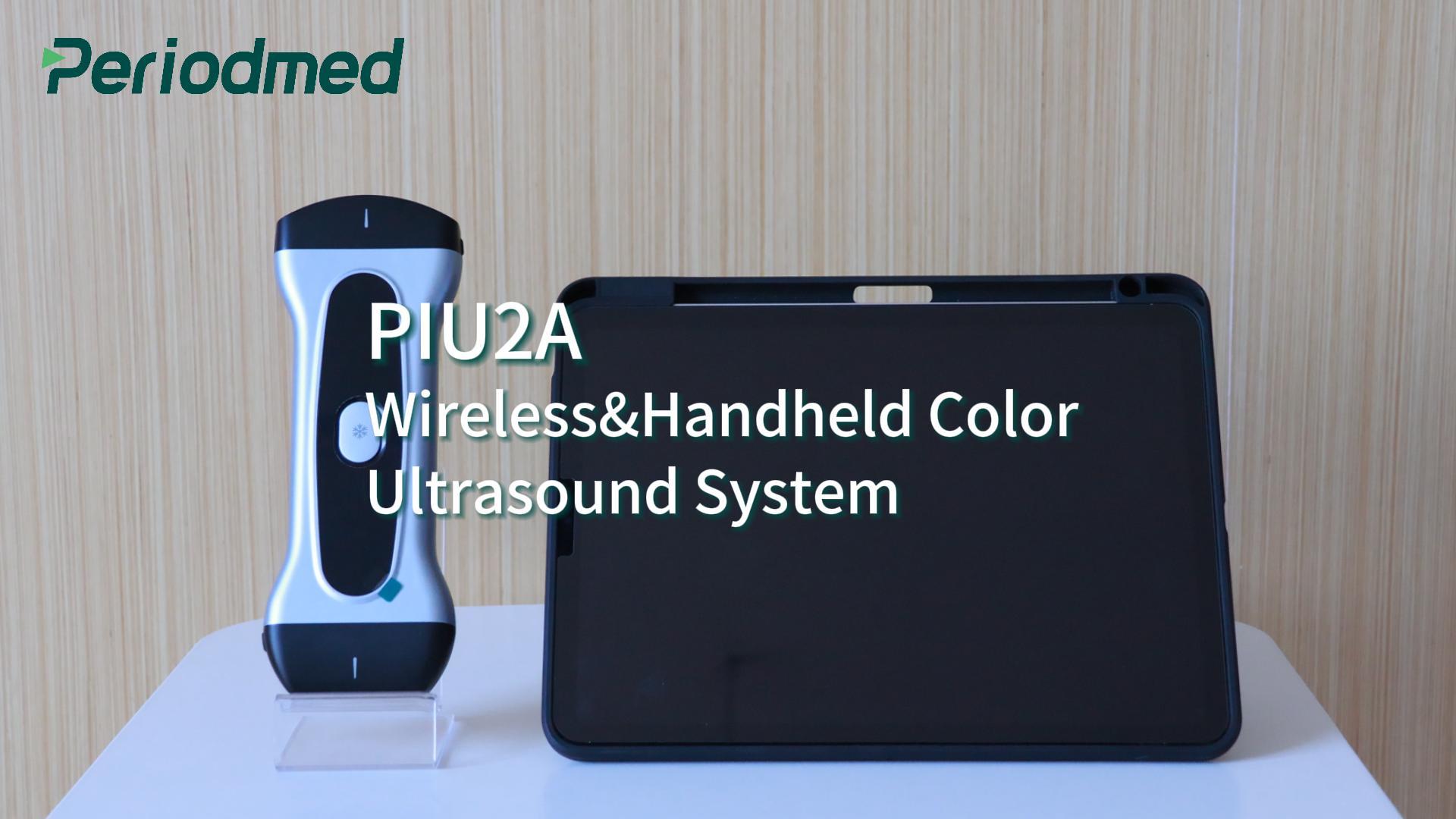

Video
