AI-Powered MSK Handheld Ultrasound | PAU2A

AI Musculoskeletal Wrist Ultrasound: Accessible Excellence with Versatile Probes

Green line

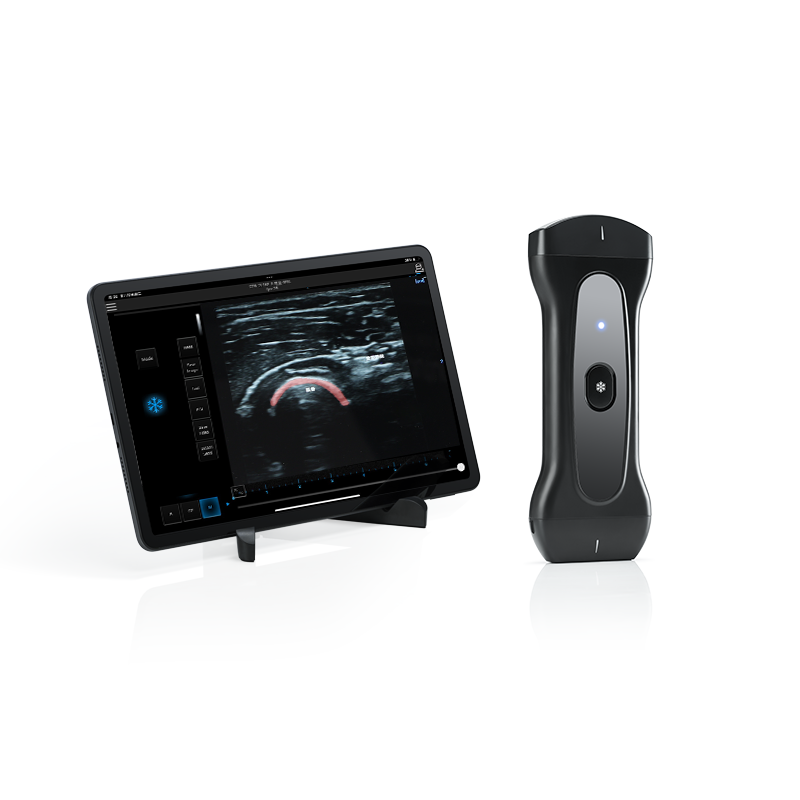

Boasting a sleek metal paint finish, the Periodmed PAU2A redefines accessibility for MSK ultrasound, making professional imaging available to all. Its innovative three-in-one design integrates convex, linear, and phased array probes with 128/64 element channels, enabling wide scanning ranges for both superficial wrist structures and deep tissues like the abdomen or heart. This versatility positions it as a game-changer for AI Musculoskeletal Wrist Ultrasound, bridging the gap between portability and performance for clinicians across settings.









  • 画板 1 拷贝 3



    Wireless & Portable: AI Musculoskeletal Wrist Ultrasound for Ganglion Cyst Detection

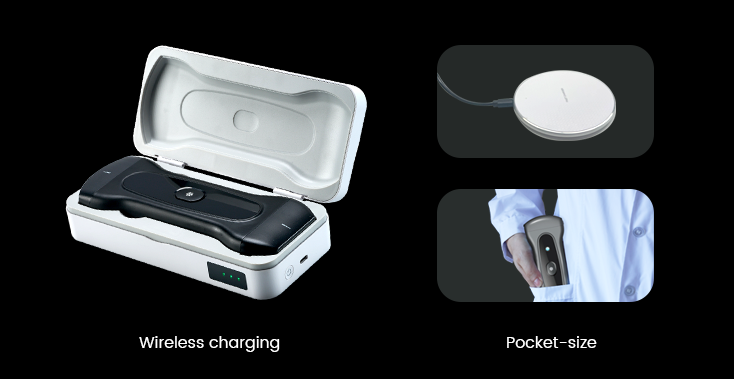

    Engineered for seamless usability, the PAU2A supports wireless charging and multi-terminal connectivity (iOS, Android, Windows). Its pocket-sized, lightweight build excels in emergencies and point-of-care MSK scenarios, ensuring quick access to critical imaging. For AI musculoskeletal wrist ultrasound for ganglion cyst detection and measurement, this portability means on-the-spot visualization of cystic lesions, with clear imaging aiding precise sizing—essential for timely intervention and non-operative management.

    •

  • Long-Lasting Performance: AI-Driven Musculoskeletal Wrist Ultrasound for Ligament Injuries

    Equipped with a 3200mAh rechargeable lithium battery, the PAU2A delivers up to 3 hours of continuous scanning, minimizing downtime and maximizing clinical efficiency. This reliability is pivotal for AI-driven musculoskeletal wrist ultrasound for wrist ligament injury evaluation, as it supports prolonged assessments of complex structures like the scapholunate ligament. Clinicians can confidently evaluate traumatic or overuse injuries without power constraints, streamlining diagnosis and treatment planning.



    AI ultrasound msk

    •

  • 画板 1 拷贝 5



    Harmonic Imaging: AI-Enabled Musculoskeletal Wrist Ultrasound for Repetitive Strain Assessment

    Powered by Harmonic Imaging Technology, the PAU2A enhances contrast resolution using tissue-generated second harmonics, producing crystal-clear images that elevate diagnostic accuracy. This advanced imaging is instrumental for AI-enabled musculoskeletal wrist ultrasound for repetitive strain injury assessment, as it detects subtle soft tissue changes in tendons and muscles—common in occupational or athletic overuse. The technology ensures early identification of pathologies, guiding targeted rehabilitation strategies.

    • Durable & Sterile-Ready: Robust Design for Clinical Versatility

      With an IPX7 waterproof rating, the PAU2A withstands rigorous clinical environments and easy disinfection, ensuring durability in all conditions. Its wireless connectivity eliminates cable clutter, making it ideal for sterile operating rooms and point-of-care settings. Complementing its robust build, the device’s AI-enhanced capabilities—from ganglion cyst detection to ligament evaluation—solidify its role as a versatile tool for modern musculoskeletal care, merging reliability with cutting-edge diagnostic precision.



      画板 1 拷贝 3

AI Ultrasound imagings


AI is rapidly evolving and is being integrated into portable ultrasound devices to make ultrasound imagings easier to read. Aura AI Device keeps portability in mind to make ultrasound scanning quick and easy.


  • 2a1a02
  • 2a1a_
  • 2a1b00
  • 2a1a01
  • 2a1a000
  • 2a1a00

Specification

Convex

Linear

Phased Array

Frequency：

2.5 / 3.5 / 4.0 / 5.0 / 6.0 / H3.6 / H4.0 / H5.0 / H6.0MHz

5.0 / 7.5 / 9.0 / 10.5 / 12 / H10 / H12MHz

2.5 / 3.5 / 4.0 / 5.0 / 6.0 / H3.6 / H4.0 / iH3.6 / iH4.0MHz

Depth：

40-300

20-150

40-300

Gain：

1-100%

1-100%

1-100%

Dynamic Range:

36db-120db

36db-120db

36db-120db

Focus Number：

1

1

1

Spot Reduction:

On/Of

On/Of

On/Of

PW Measurement Range:

±15cm / ±120cm

±5cm / ±100cm

±15cm / ±160cm

CF Measurement Range:±8cm / ±76cm±3cm / ±48cm±6cm / ±62cm
Mode:B / CF / PW / M / PDI / DPDIB / CF / PW / M / PDI / DPDI / Needle EnchancementB / CF / PW / M / PDI / DPDI

TGC：

8 Segments

8 Segments

8 Segments

Battery：

3200mA

3200mA

3200mA

Element Channel：

128 64

128 64

128 64

Connection Terminal：

Android / iOS / Windows

Android / iOS / Windows

Android / iOS / Windows

Charging Time：

Wireless charging 30 Minutes to 43% 60Minutes to 100%

Wireless charging 30 Minutes to 43% 60Minutes to 100%

Wireless charging 30 Minutes to 43% 60Minutes to 100%

Weight：

212g

212g

212g

Optional：

Wireless charge box

Wireless charge box

Wireless charge box
