Cart-Based Vet Abdominal Ultrasound Console Revo T1 VET

cart-based vet ultrasound

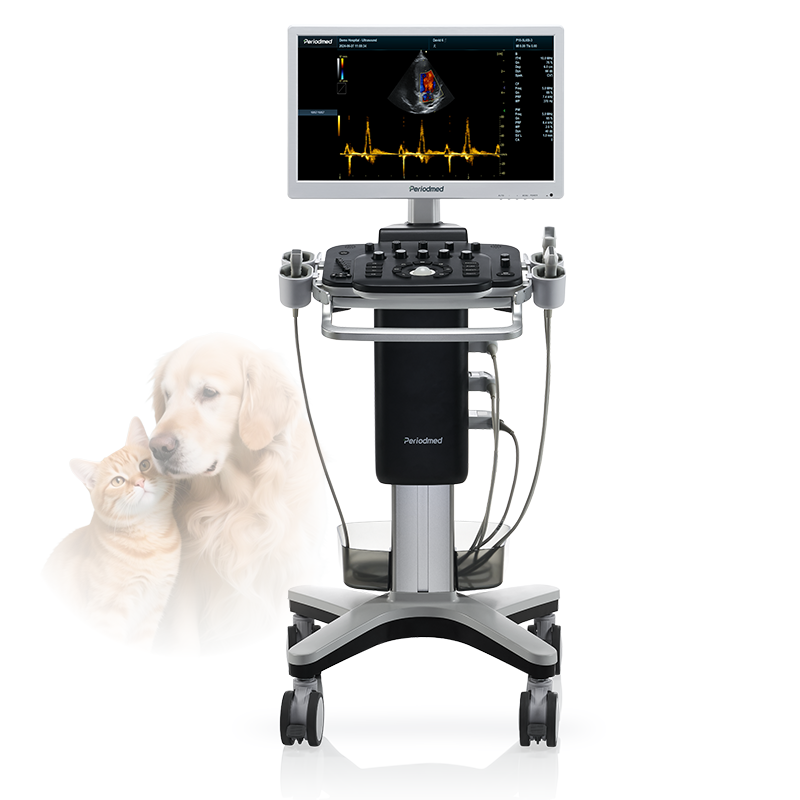

Cart-Based Vet Ultrasound Console | Revo T1

Powerful Veterinary Ultrasound Machine

Green line

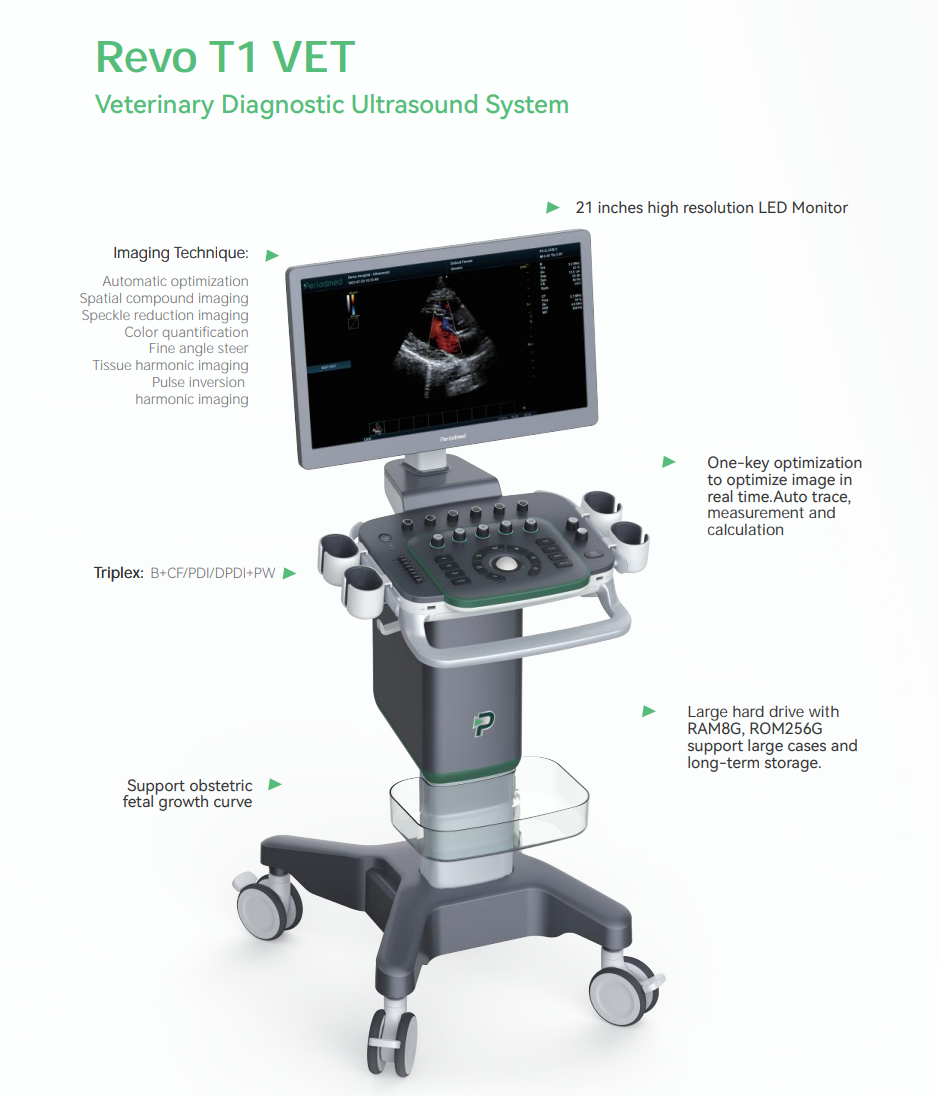

Periodmed Revo T1 is the best cart-based veterinary ultrasound system, designed for quick responsiveness and ease of use. Its advanced technology and intuitive interface maximize diagnostic efficiency in busy veterinary clinics. The 21-inch high-resolution LED monitor provides clear imaging, while the one-key optimization feature streamlines image quality adjustments. The built-in case management system allows for easy viewing of cases by labels and supports direct connection to various printers. Distributors can promote this veterinary ultrasound scanner as a reliable, user-friendly solution that enhances workflow and ensures precise veterinary diagnostics across diverse practice environments.

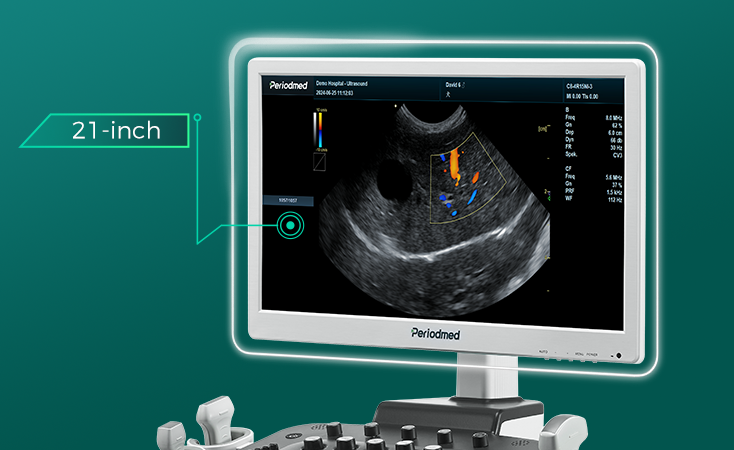

  • 21 inch ultrasound machine

    Versatile Display Modes for Comprehensive Imaging

    The Revo T1 supports a wide array of standard display modes, including B, Dual B, Quad B, CF, M, PW, Power Doppler, and more, providing flexibility for different diagnostic needs. Optional modes like Tissue Doppler Imaging, 3D/4D, Wide View, and Needle Enhance further expand its capabilities. These features enable detailed visualization of organs, blood flow, and soft tissues, making it an ideal veterinary ultrasound system. Distributors can emphasize its comprehensive imaging options, catering to various clinical applications such as reproductive health, vascular assessment, and internal organ evaluation, fostering confidence in diagnostic accuracy.

    •

  • Extensive Applications for Veterinary and Animal Care

    This veterinary ultrasound system is suitable for a broad range of applications, including veterinary stations, pet agencies, small animal practices, equine clinics, and farm markets. Its versatility supports pregnancy monitoring, tumor detection, organ assessment, and blood flow analysis across multiple animal species. Whether used for routine examinations or complex diagnostics, the Revo T1 adapts seamlessly to different practice needs. Distributors can highlight its multi-application capability, making it an essential tool for clinics seeking a reliable, all-in-one veterinary ultrasound scanner capable of serving diverse animal health requirements.



    vet ultrasound application
  • vet ultrasound



    Customizable Probe Settings and Robust Storage

    The Revo T1 offers customizable probe parameter settings, allowing users to call up preset configurations with a single click, simplifying operation. Its large hard drive with 8GB RAM and 256GB ROM supports extensive case storage and long-term data management. This makes it suitable for handling large imaging files and long-term case archives efficiently. Distributors can position this as an ideal veterinary ultrasound system for busy practices, providing both operational convenience and ample storage capacity, ensuring seamless workflow and comprehensive record-keeping for animal health management.

    •

    • Advanced Imaging Technologies for Superior Diagnostics

      Equipped with cutting-edge imaging features such as automatic optimization, spatial compound imaging, speckle reduction, tissue harmonic imaging, pulse inversion harmonic imaging, and fine angle steer, the Revo T1 delivers superior image quality. These technologies enhance tissue contrast, reduce noise, and improve resolution, supporting accurate diagnosis of complex cases. Distributors can promote this as the best veterinary ultrasound machine, emphasizing its ability to provide detailed, high-quality images for reproduction, internal organs, and blood flow assessments. Its advanced imaging capabilities make it an indispensable tool for modern veterinary practices worldwide.



      vet ultrasound application

Animals Ultrasound Images

  • Micro-convex Probe-Color Doppler Mode-Spleen Dog
  • Micro-convex Probe-Color Doppler Mode-Kidney Dog
  • Micro-convex Probe-Color Doppler Mode-Liver Cat

Ultrasound imaging

  • Carotid B+CF+PW
  • Carotid ultrasound imaging
  • Elastography
  • Heart ultrasound
  • T1 ultrasound imaging
  • Needle enhancement

Specification

Application
GenericObstetricsGynecologyAbdomen
VascularSmall PartsUrologyThyroid
CardiologyMSK
Image Formats
AVIBMPJPGPNG
DICOM
Transducer Types
Convex probeLinear probePhased array
Micro convex array
Volume arrayIntracavity probe
    Operating Mode
B
2B
4BCW
MCF
B/MPW
PDIPicture in PictureTrapezoidPanorama
3D/4D（Optional）Wide view（Optional）Color M ModeAnatomy M
TDI（Optional）Needle Enhance Mode（Optional）Contrast Enhance Mode（Optional）
System Architecture
Elements: 64/128Frequency Range: 2.0-22.0 MHzChannel:64Hard Drive:128G
Dynamic Range: ≥120db13.3 Inches touch screenResolution:1024*768Beam forming 4
Memory:4G21 Inches High Resolution LED Monitor
Triplex
B+CFPDIDPDI+PW
Languages
EnglishArabicFrenchIndonesian
ItalianPortugueseSpanishChinese
GermanRussian
