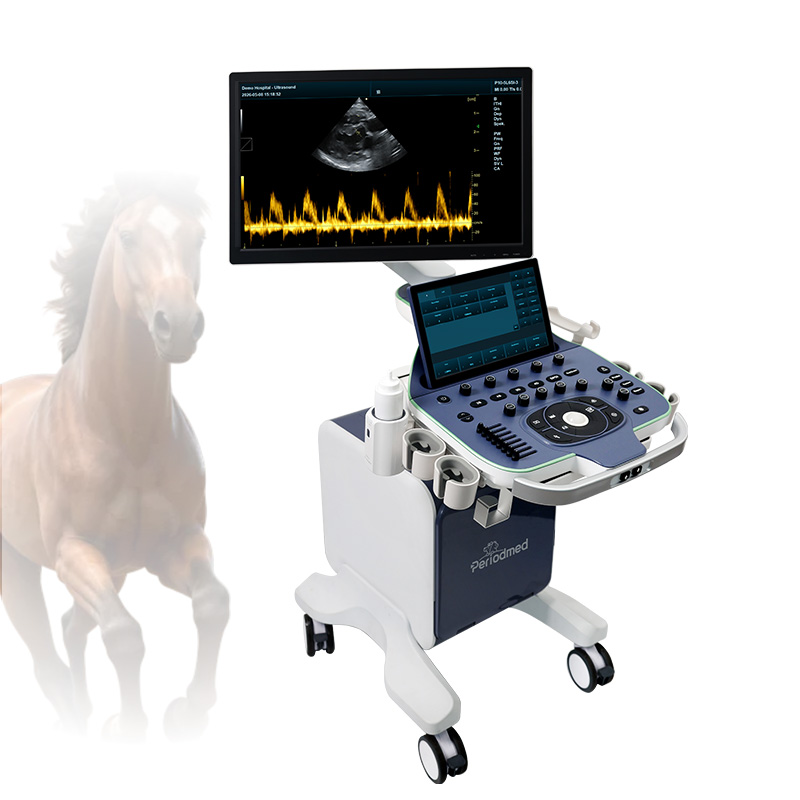

Cart-Based Ultrasound System|Revo T2

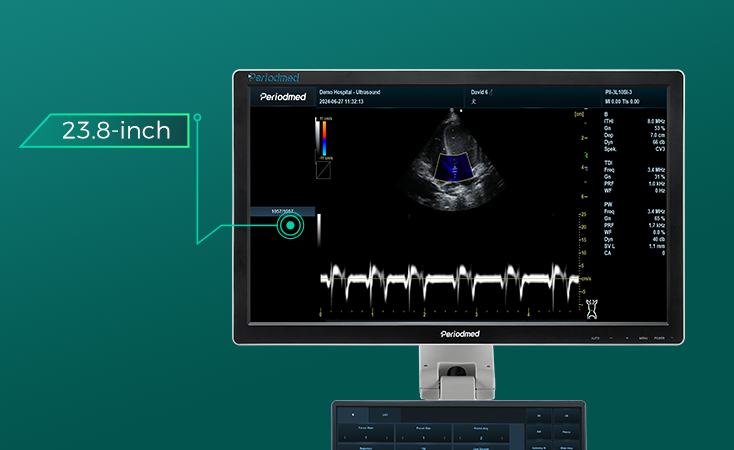

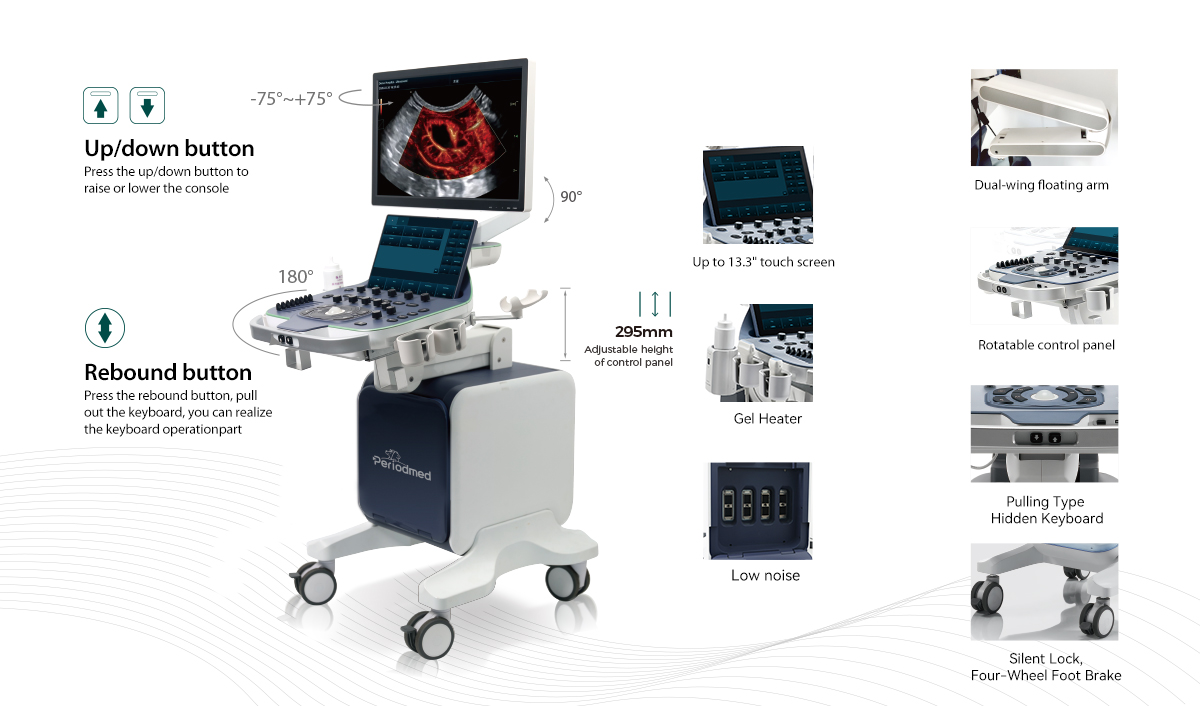

As a cart-based veterinary ultrasound system with phased array probe for equine cardiac ejection fraction monitoring, the Revo T2 excels in equine cardiology. Its cart design features a 23.8-inch HD LED main screen, 13.3-inch adjustable touchscreen, and four-wheel foot brake for stability in complex environments. Equipped with a dedicated phased array probe (via four-probe universal interface), it leverages GPU-based Soft Beamformer Technology to deliver deep, clear imaging—critical for accurate ejection fraction calculations in horses. The silent lock and hidden keyboard enhance usability in clinical settings.
This pulsed wave Doppler cart-mounted ultrasound system for performance horse cardiac stroke volume monitoring integrates 192 elements and 64 channels with sound speed calibration. Its 16-beam compound algorithm ensures dynamic, precise measurements of stroke volume—validated to match thermodilution accuracy. Multiple display modes (including PW and M-mode) support real-time analysis of athletic horses’ cardiac function. The cart’s flexible mobility allows deployment in training facilities or clinics, empowering veterinarians to optimize performance and detect issues early.
The Revo T2 is a cart-based equine ultrasound system for geriatric horse myocardial performance index (MPI) monitoring. It addresses age-related myocardial changes (e.g., reduced contraction velocity) with advanced modes like PDI/DPDI and accurate parameter calculation. The HD imaging quality, powered by GPU architecture, captures subtle myocardial function differences, enabling reliable MPI assessment. Its sturdy cart design with silent casters ensures easy maneuverability in equine hospitals, supporting comprehensive geriatric cardiac care.

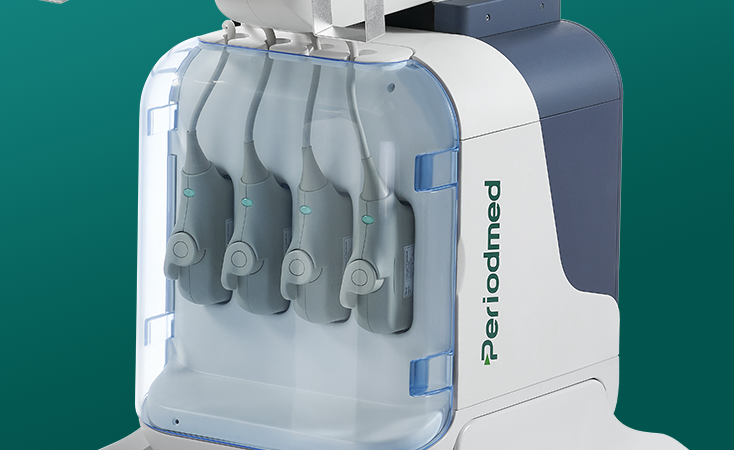

As a color flow Doppler-equipped cart-based ultrasound system for equine valvular cardiac function assessment, it detects valvular insufficiency with high sensitivity. The CF mode, combined with 16-beam compounding, visualizes blood flow dynamics clearly. Its four-probe universal interface accommodates cardiac probes for targeted valvular imaging, while the dual-screen setup allows simultaneous viewing of Doppler data and 2D images. Ideal for diagnosing valvular disorders, it supports timely intervention in horses of all ages.
The Revo T2 offers wide-ranging utility across veterinary stations, pet agencies, and farm markets—covering small animals, equine, and livestock. Beyond cardiac care, it supports pregnancy monitoring, tumor diagnosis, and musculoskeletal/neurological imaging via customizable probes. The cart-based design balances portability and performance, with a large-capacity configuration and ergonomic features. Its multi-system compatibility (adapting to diverse clinical needs) and advanced imaging make it the best all-in-one veterinary ultrasound machine for modern practices.
Convex Probe-B Mode-Abdomen Sheep
Convex Probe-B Mode-Uterus1 Pig
Convex Probe-B Mode-Uterus2 Pig
Convex Probe-B Mode- Right Liver 1 Horse
Trans-vaginal Probe-BB Mode-Uterus Cow
Linear Probe-B Mode- Pregnant 1 Cow
Micro-convex Probe-Color Doppler Mode-Spleen Dog
Micro-convex Probe-Color Doppler Mode-Kidney Dog
Micro-convex Probe-Color Doppler Mode-Liver Cat
| Application | |||
| Generic | Obstetrics | Gynecology | Abdomen |
| Vascular | Small Parts | Urology | Thyroid |
| Cardiology | MSK | ||
| Image Formats | |||
| AVI | BMP | JPG | PNG |
| DICOM | |||
| Transducer Types | |||
| Convex probe | Linear probe | Phased array | |
| Volume array | Intracavity probe | Micro convex array | |
| Operating Mode | |||
| B | 2B | 4B | CW |
| M | CF | B/M | PW |
| PDI | PIP | Trapezoid | Panorama |
| 3D/4D(Optional) | Wide view (Optional) | Picture in Picture | Color M |
| Anatomy M | Directional Power Doppler Imaging | TDI(Optional) | Needle Enhance (Optional) |
Contrast Enhance（Optional） | Elastography (Optional) | SMV(Optional) | |
| System Architecture | |||
| Elements: 64/128/160/192 | Frequency Range: 2.0-22.0 MHz | Memory:8G | Hard Drive:256G |
| Dynamic Range: ≥120db | 13.3 Inches touch screen | Resolution:1920*1080 | Beam forming 16 |
| Frequency Range: 2.0-22.0 MHz | 23.8 Inches High Resolution LED Monitor | ||
| Physical Specs | |||
| 23.8 Inches High Resolution LED Monitor | Magnetic latch closure | Built-in speaker | Brightness and contrast adjustable |
| Languages | |||
| English | Arabic | French | Indonesian |
| Italian | Portuguese | Spanish | Chinese |
| German | Russian | ||
